Multi-purpose Radiography Detector MSL1500L for sale

Multi-purpose Radiography Detector MSL1500L for sale

Business Information

  • Price : $21557 USD
  • Min. Order : 1 Set Set/Sets
  • Certificate : CE,
  • FOB Port : FOB GUANGZHOU
  • Made In : China(CN)
  • Packaging : Standard export package
  • Supply Capability : 1500 SETS PER MONTH
  • Delivery Time : within 7-10 workdays after receipt of payment
Favorites

Product Features

Could you contcct our sale manager.we will tell you the price,Please see our contact.
SKYPE:msl_saler01
Mobile:+86 138 2644 8637
Email:cindy@medicalequipment-msl.com
website:http://www.medicalequipment-msl.com



Multi-purpose Radiography Detector MSL500L for sale

Multi-purpose Radiography Detector MSL1500L price

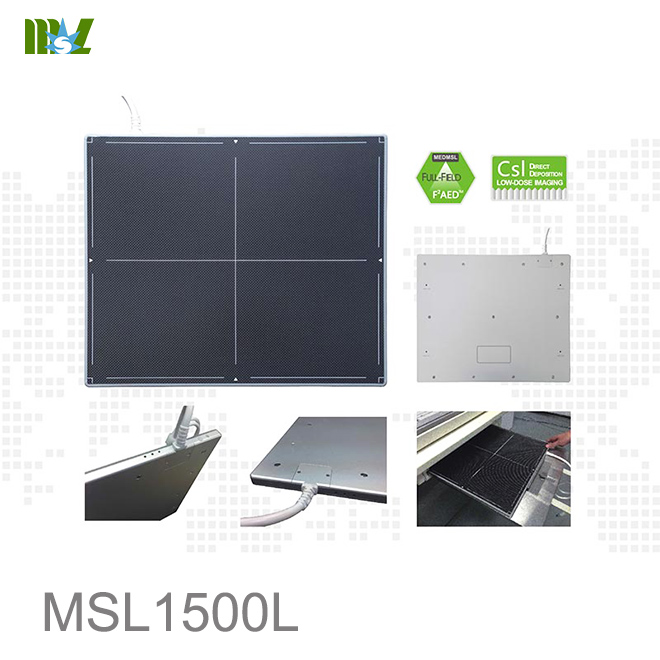

MSL Multi-purpose Radiography Detector MSL1500L features

The 14"X17" (384 460 15mm³ ) mutil-purpose detector CareView® 1500L is designed to meet
a wide-range of requirements for digital radiography applications, e.g. retrofit of existing radiography
systems (e.g. CCD-DR, CR and film), integration with fix-mounted systems, and also
various mobile and portable DR systems.

The most advanced CsI direct-deposition technology ensures excellence of image quality at low X-
ray dose and improves operation safety.

Multiple modes of synchronization provides an universal flexibility for system manufacturers and
integrators.

Unique F²AED™ (Full-Field Automatic Exposure Detector) Detectoe offers a full-imaging-area
coverage and low dose sensitivity for accountable operation in challenging situations.

Low power-consumption, thermal-efficient design, and one-cable connection make CareView®
1500L easy to install and operate.

CareView® 1500L is a perfect combination of robust performance and cost advantage.


cheap Radiography Detector MSL1500L for sale



best Multi-purpose Radiography Detector MSL1500L

Best Multi-purpose Radiography Detector MSL1500L Specifications


Sensor
Scintillator          CsI Direct Deposit
Active Area         434 x 355 mm2 (14"x17")
Pixel Array          2816X2304
Pixel Pitch          154 μm


Image Quality
Limiting Resolution   3.3lp/mm
MTF                   >70%……(@1lp/mm)
                      >40%……(@2lp/mm)
                      >22%……(@3lp/mm)
DQE                   >65%……(@0lp/mm)
                      >20%……(@3lp/mm)
Sensitivity           ~0.62ct/nGy
Maximum Linear Dose   95Gy
Dynamic Range         >82dB
Greyscale             16bits

Communication Interface
Communication Interface      Gigabit Ethernet
Image Acquisition Time        2-3s
Exposure Control                    F²AED™
                                                    Manual



Environmental
Operating                                                          Natural Cooling
Temperature Range                                       5℃-35℃ (41℉-95℉)
Humidity Range(Non-condensing)             30%-75%RH
Storage
Temperature Range                                       -20℃-55℃ (-4℉-67℉)
Humidity Range                                               10%-90% RH


Mechanical

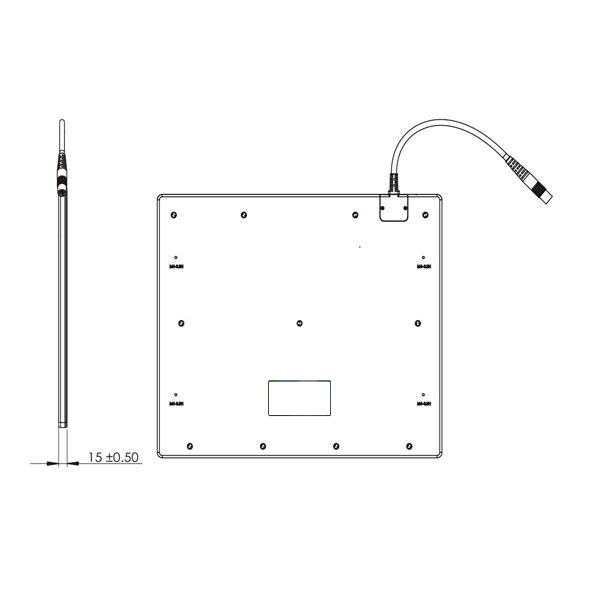

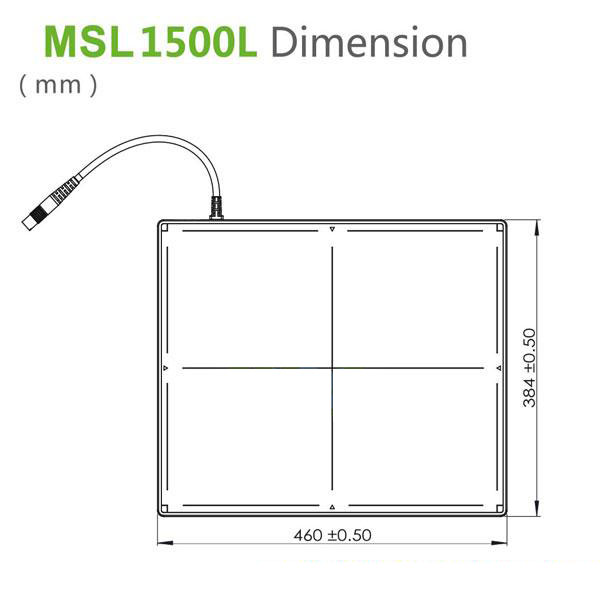

Dimension                                       384x460x15mm3 (15"x18"x0.6")
Weight                                               3.4Kg
Housing Material                             Carbon fiber front
High Strength                                    aluminium alloy back

Power
Power Dissipation                            8W (standby) 20W (operating)
Power Supply                                     100-240V AC
Frequency                                            50/60Hz

Regulatory
FDA        *(In progress)
CE         HD60077005 0001
UL         E464810
