We are professional supplier of portable anesthesia machines.
anesthesia ventilator Feature:
Compact light-weight and portable,could be transported by pull-rod case,put on table and assembly on the trolley.
Jackson or Bains Absorber is available
Specifically designed to accomodate low flow
Selectatec-bar and quick change vaporizer mounting device
Professional airtight breathing circuit design,provide the stable gas anesthesia,save anesthesia gas consumption,to ensure a clean operating room and laboratory environment.
External and reusable soda lime canister,easily watch and replace soda lime.
With Oxygen flush function to ensure that clinical anesthesia demand and Oxgyen supply demand.
With APL pressure reducing valve to prevent pressure to hurt the animal,ensure the animal safety .
Wastewater discharge system
Visible inspiration and expiration valve
Could upgrade to Oxygen&N2O or Oxygen&Air flow meter freely
Module rack with polyester medical material with superior spray technology,high strength and light weight.

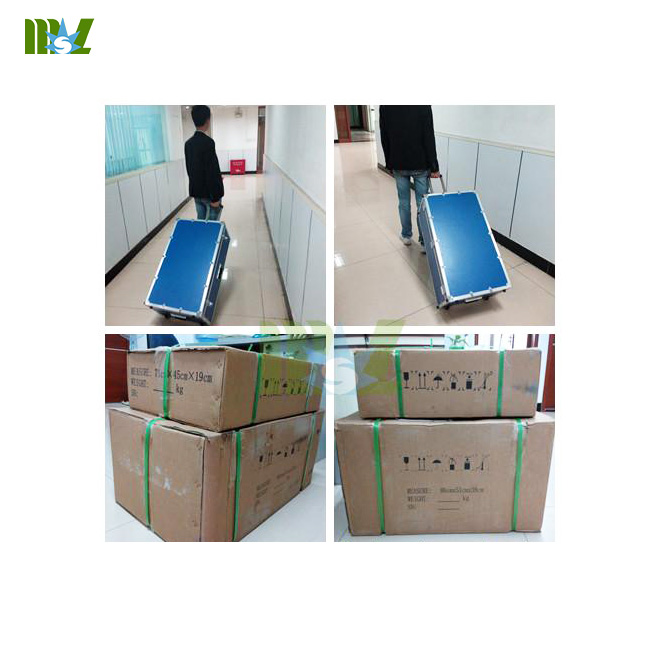

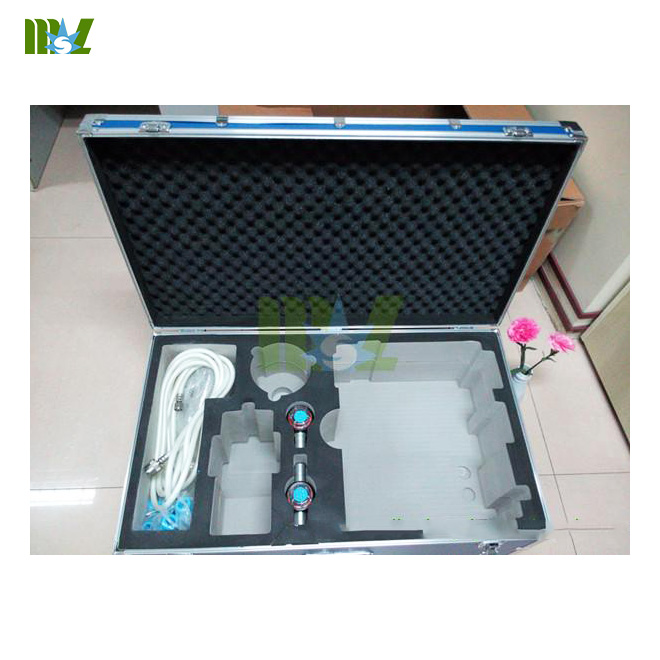

With transport case,convenient to take and transport
Easy to disassemble and assemble all the components,convenient for clean and maintenance.
MSLGA07 cheap medical Anesthesia ventilator Specification:
Application:Adult and pediatric( 3kg over)
Tidal volume( Manual Mode):10~2000ml
Flow meter:Oxygen two tube:one tube:0.1~1,one tube:1~10L/M
I:E:As the doctor operation
BPM:As the doctor operation
Monitoring:Airway pressure,respiratory mode.
Three gauges:One for Oxygen source pressure
One for oxygen working pressure
One for airway pressure
With the latest innovative design of delivery system,vaporizers deliver accurate concentration under varying conditions of variable flow rate,pressure,temperature and so on.
Stably deliver agent,automatic temperature-compensating,deliver accurate agent
Sophisticated delivery system,Stable,prompt,accurate
Various kinds of mounting types.
Safety lock device to prevent the anesthetic gas volatile accidentally.
The big view window is convenient to observe drug usage levels.
Concentration range of portable anesthesia machines
Enflurane 0.2 to 5%
Isoflurane 0.2 to 5%
Halothane 0.2 to 5%
Sevoflurane 0.2 to 8%
Flow range:0.2 to 15L/min
0.2 to 10L/min(normal usage)for concentrations>5 vol%
Filling volume for agent:
About 340ml with dry wick
About 300 ml with moist wick
Mounting type of portable anesthesia machines
Draeger plug in
Cagemount(ISO 23mm tapers)
Cagemount with interlock
Our anesthesia ventilator image share / Customerreality pats picture

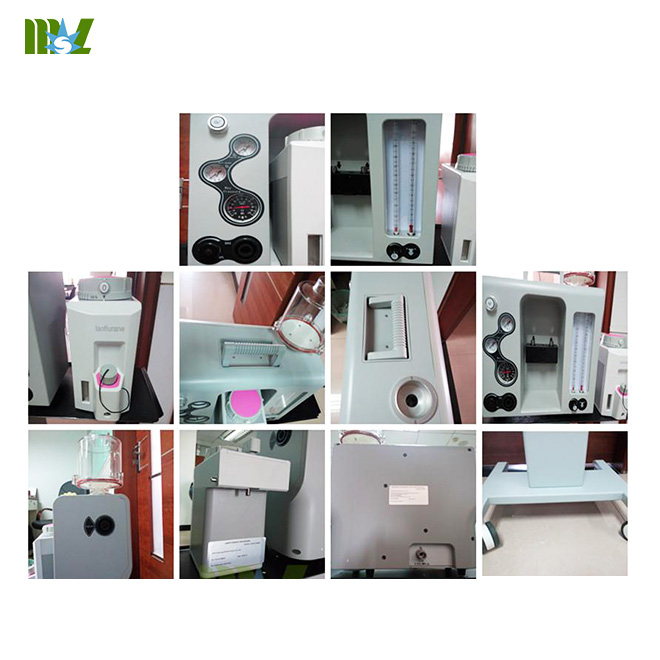

Anesthesia ventilator MSLGA07 Product details show

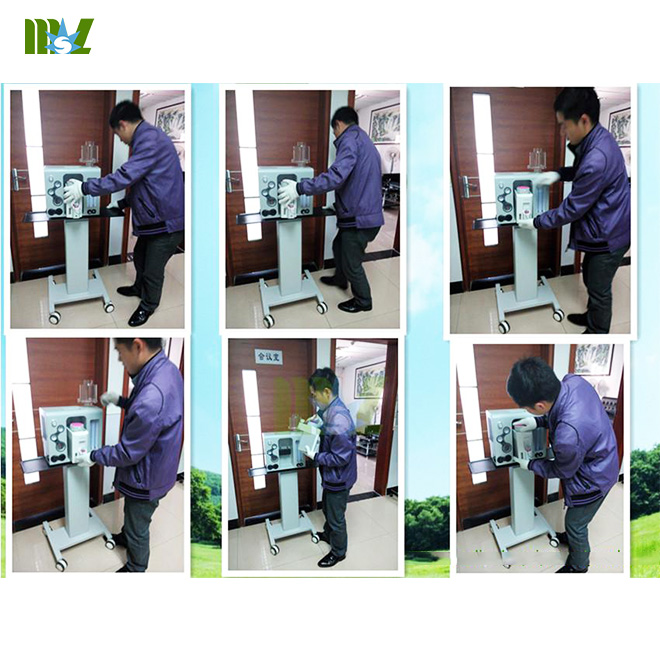

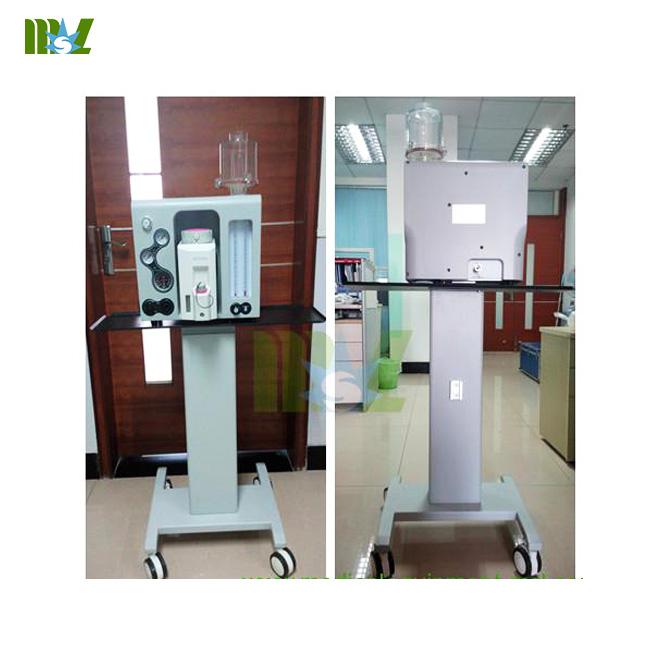

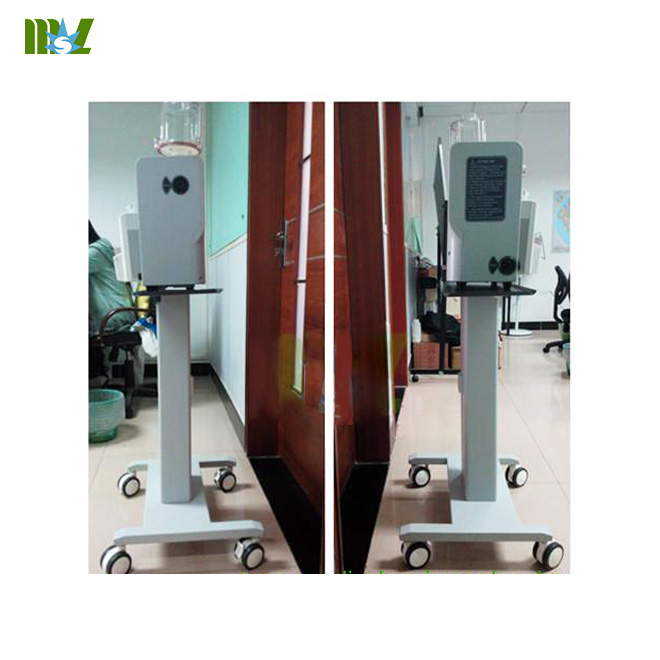

Anesthesia ventilator MSLGA07 installed demo show

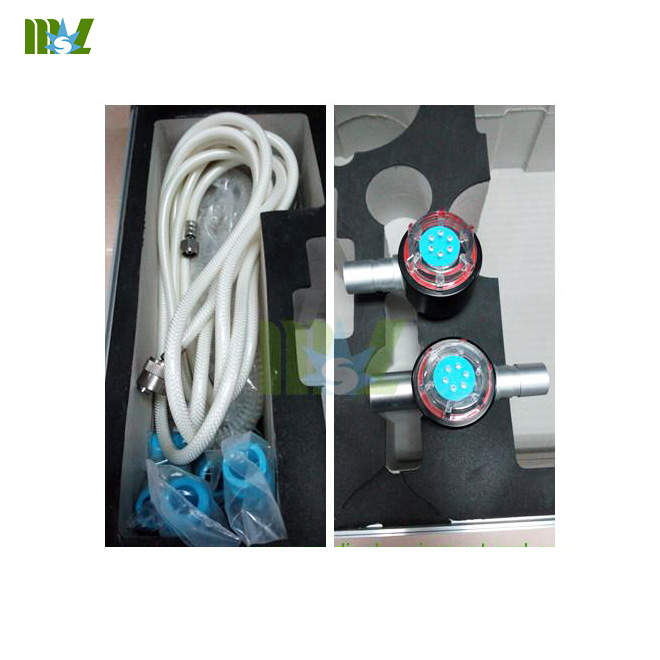

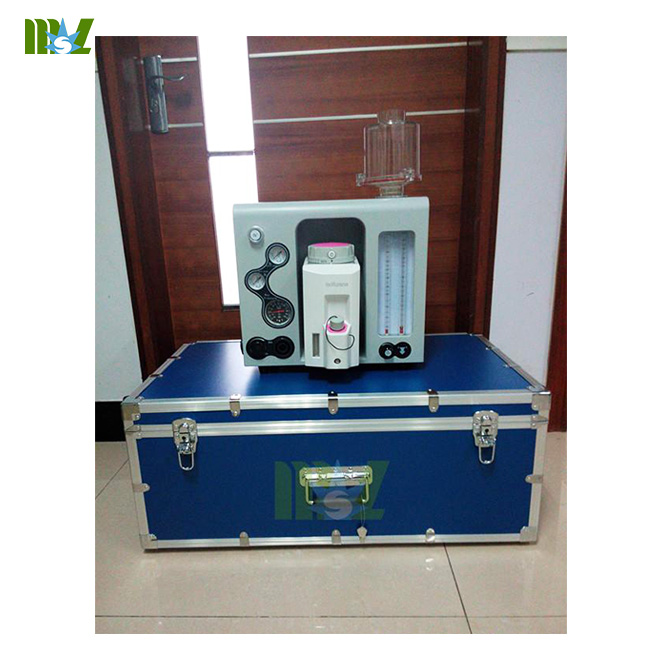

Anesthesia ventilator MSLGA07 Standard Configuration

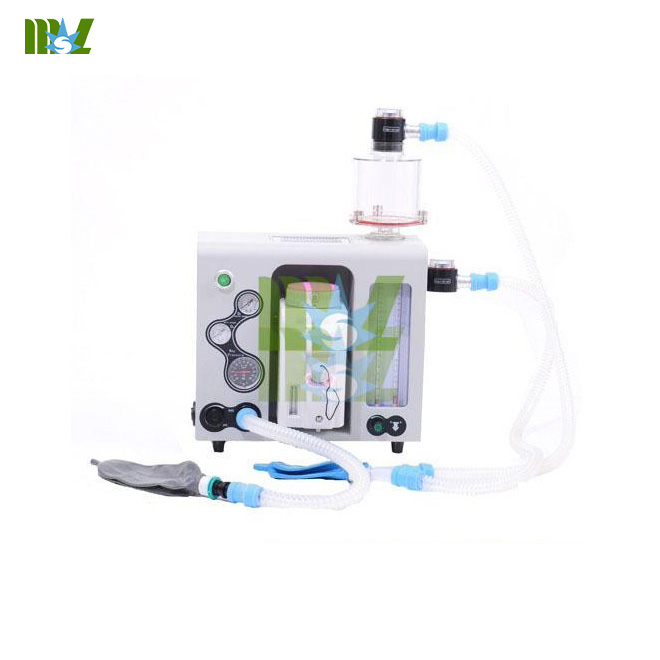

Portable anesthesia machine& Unit-MSLGA07

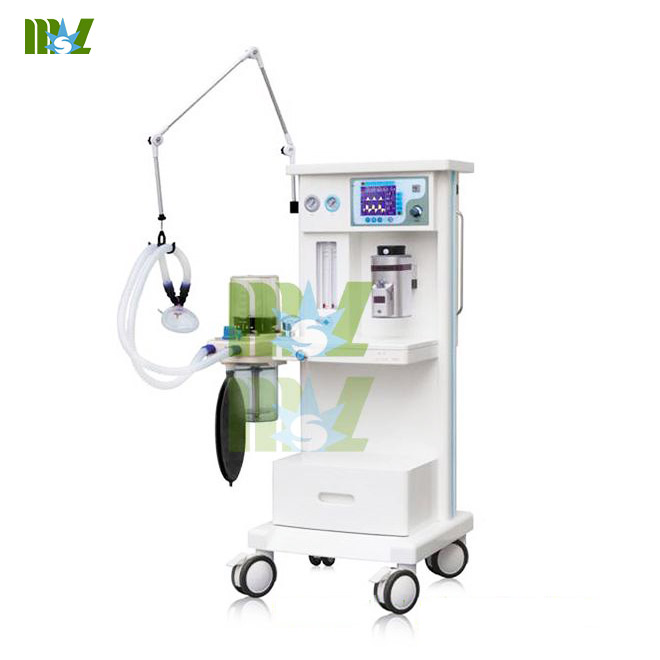

Sevoflurane Anesthesia or Other Gas Anesthesia machine - MSLGA02
Portable ventilator machine-MSLPA01,portable medical emergency icu ventilator machine with CE approve

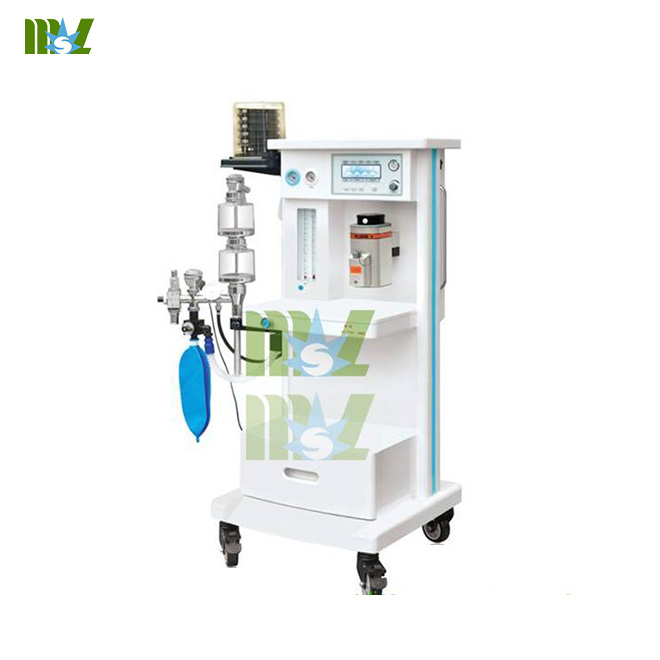

Halothane anesthesia or other gas anesthesia machine - MSLGA04

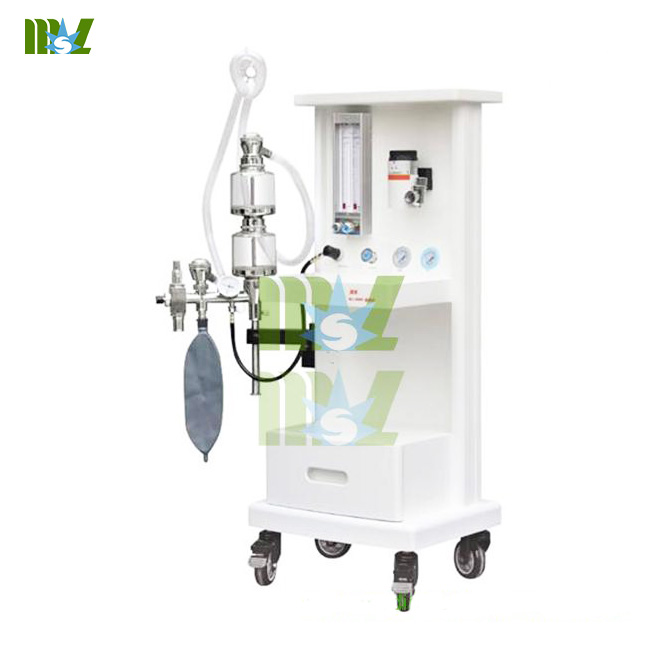

Portable Gas Anesthesia Machine or Other Enflurane Anesthesia with CE approve-MSLGA03
